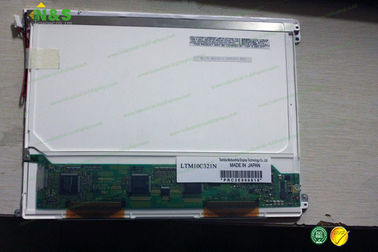

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)

Orzecznictwo
Chiny N&S ELECTRONIC CO., LIMITED Certyfikaty
Chiny N&S ELECTRONIC CO., LIMITED Certyfikaty
Opinie klientów
Wróciliśmy pełni wspaniałych wspomnień, N & S to bardzo dobra organizacja. Naprawdę ekspert od monitorów LCD.

—— Andy

Chcielibyśmy pochwalić usługę, którą otrzymaliśmy od tej firmy, która bezbłędnie zorganizowała naszą linię zasilającą panel LCD.

—— MH Thatcher

Jeśli planuję kolejne zamówienie panelu LCD, nie zawaham się skontaktować z tobą ponownie.

—— Alejandro

Im Online Czat teraz

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)
LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)

Duży Obraz :  LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)

Szczegóły Produktu:
Place of Origin: KOREA
Nazwa handlowa: TOSHIBA
Orzecznictwo: ISO9001
Model Number: LTM10C321N
Zapłata:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)

Opis
Panel Size: 10.4 inch Resolution: 1024×768
Contrast Ratio: 250:1 (Typ.) Frequency: 60Hz
Input Voltage: 3.3V (Typ.)
High Light:

industrial touch screen display

,

industrial lcd screen

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)



LTM10C321N Basic Information

Panel Model LTM10C321N
Panel Brand TOSHIBA
Descrition LTPS TFT-LCD ,10.4 inch, 1024×768
Panel Type LTPS TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



LTM10C321N Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 123 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0685×0.2055 mm (H×V)
Pixel Pitch 0.2055×0.2055 mm (H×V)
Surface Antiglare, Hard coating (3H)
Active Area 210.432×157.824 mm (H×V)
Bezel Area 217.2×164.7 mm (H×V)
Outline Dimension 238.6×173.2 mm (H×V)
Outline Depth 5.0 (Max.) mm
Holes & Brackets Face mounting holes (4-Φ3.0) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without



LTM10C321N Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 150 cd/m² (Typ.)
Contrast Ratio 250 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 50/50 (Max.)(Tr/Td)
Viewing Angle 30/30/10/20 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.340; Wy:0.340
White Variation 1.82 (Max.)(9 points)
Sunlight Readable N
