Szczegóły Produktu:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 3.8 inch |
|---|---|---|---|
| Resolution: | 320×240 | Active Area: | 76.8×57.6 mm |
| Display Colors: | 262K (6-bit) | Outline: | 96.8×73 mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

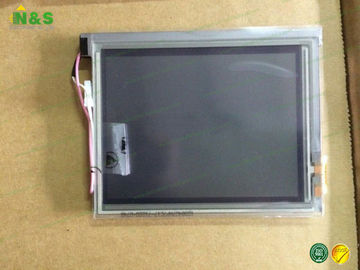

New and original 3.8 inch Normally White TM038QV-67A03 TFT LCD Module TORISAN Active Area 76.8×57.6 mm
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C060SWA3 R0 | IVO | 6.0" | 720×1280 |
| C080SWW3-0 | IVO | 8.0" | 800×1280 |
| CLAP042JB01 DW | CPT | 4.2" | 480×272 |
| BP096WX7-100 | BOE | 9.6" | 800×1280 |
| V500HK3-PS1 | Innolux | 50" | 1920×1080 |
| ST3151A04-7 | CSOT | 31.5" | 1366×768 |
| HSD0702FW1-A00 | HannStar | 7.0" | 1024×600 |
| TPF0702002N | JDI | 7.0" | 1200×1920 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| BF050QHE-400 | BOE | 5.0" | 540×960 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
TM038QV-67A03 Basic Information
| Panel Model | TM038QV-67A03 |
| Panel Brand | TORISAN |
| Descrition | a-Si TFT-LCD ,3.8 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -30 ~ 60 °C |
TM038QV-67A03 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 65g (Typ.) |
| Active Area | 76.8×57.6 mm (H×V) |
| Bezel Area | 80.0×62.2 mm (H×V) |
| Outline Dimension | 96.8×73 mm (H×V) |
| Outline Depth | 5.1 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
TM038QV-67A03 Optical Features
| Display Mode | TN, Normally White, Reflective |
| Display Color | 262K (6-bit) |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥2) (L/R/U/D) |
| White Variation | 1.60 (Max.)(9 points) |
| Sunlight Readable | Y |
