Szczegóły Produktu:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 8.9 inch |
|---|---|---|---|
| Resolution: | 1024×600 | Contrast Ratio: | 500:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

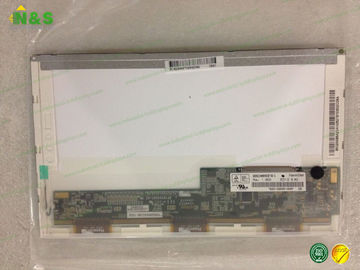

HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)
HSD089IFW1-B00 Basic Information
| Panel Model | HSD089IFW1-B00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HSD089IFW1-B00 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch | 0.1905×0.1890 mm (H×V) |
| Weight | 200/215g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 195.072×113.4 mm (H×V) |
| Bezel Area | 198.27×116.6 mm (H×V) |
| Outline Dimension | 213.36×129.55 mm (H×V) |
| Outline Depth | 5.15/5.45 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD089IFW1-B00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BF039WVQ-100 | BOE | 3.9" | 480×800 |
| ST3151A04-8 | CSOT | 31.5" | 1366×768 |
| TM060XYSP01 | Tianma | 6.0" | 540×960 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| HV480FH2-600 | BOE | 48" | 1920×1080 |
| LC320HU1A | PANDA | 31.5" | 2560×1440 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
