Szczegóły Produktu:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 7.0 inch |
|---|---|---|---|
| Resolution: | 800×480 | Surface: | Antiglare, Hard coating (3H) |
| Active Area: | 152.4×91.44 mm | Display Colors: | 262K (6-bit) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

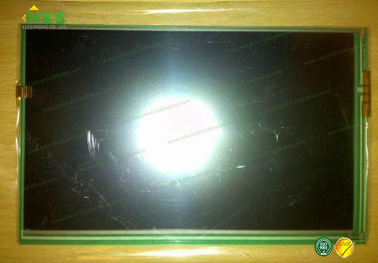

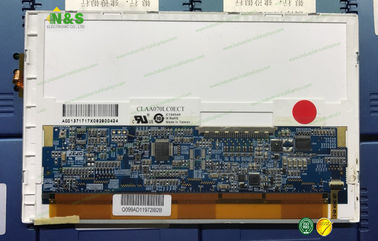

New and original CLAA070LC0ECT TFT LCD Module CPT 7.0 inch 800×480 Normally White Surface Antiglare, Hard coating (3H)
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
CLAA070LC0ECT Basic Information
| Panel Model | CLAA070LC0ECT |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
CLAA070LC0ECT Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 145g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 152.4×91.44 mm (H×V) |
| Outline Dimension | 165×104 mm (H×V) |
| Outline Depth | 5.0/6.3 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
CLAA070LC0ECT Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20 (Max.)(Tr+Td) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF024G421 AX | CPT | 2.4" | 240×320 |
| CLAF022GJ01 AX | CPT | 2.2" | 240×320 |
| CLAF050JD01 00XC | CPT | 5.0" | 480×272 |
| CLAF050JD01CX | CPT | 5.0" | 480×272 |
| TM190MFS01 | Tianma | 19.0" | 1440×900 |
| CLAF024G201C0 | CPT | 2.4" | 480×234 |
| CLAF022GH01A0 | CPT | 2.2" | 240×320 |
| CLAF020GC01A0 | CPT | 2.0" | 240×320 |
| CLAF020FG01 00XA | CPT | 2.0" | 176×220 |
| CLAF020FE01A0 | CPT | 2.0" | 176×220 |
| CLAF018DM01 00XA | CPT | 1.8" | 128×160 |
