Szczegóły Produktu:
|
| Panel Type: | LTPS TFT-LCD | Panel Size: | 12.1 inch |
|---|---|---|---|
| Resolution: | 1024×768 | Surface: | Antiglare |
| Contrast Ratio: | 150:1 (Min.) | Display Colors: | 262K (6-bit) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

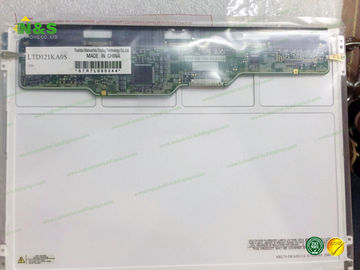

Normally White 12.1 inch LTD121KA0S TFT LCD Module Toshiba with 245.76×184.32 mm Active Area new and original
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
LTD121KA0S Basic Information
| Panel Model | LTD121KA0S |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Digitizer Easy Insertion & Assembly Solution |
LTD121KA0S Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 280g (Typ.) |
| Surface | Antiglare |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.4×188.9 mm (H×V) |
| Outline Dimension | 269×199 mm (H×V) |
| Outline Depth | 6.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTD121KA0S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 170 cd/m2 (Typ.) |
| Contrast Ratio | 150 : 1 (Min.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr+Td) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B075XTN01.0 | AUO | 7.5" | 768×1024 |
| TV070WSU-N40 | BOE | 7.0" | 600×1024 |
| LS320PUWTH | PANDA | 31.5" | 1366×768 |
| TT4851D01-4 | CSOT | 49" | 3840×2160 |
| ST4761B01-6 | CSOT | 48" | 1920×1080 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| H466TAN01.4 | AUO | 4.7" | 720×1280 |
| BF045WVE-400 | BOE | 4.5" | 480×854 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
